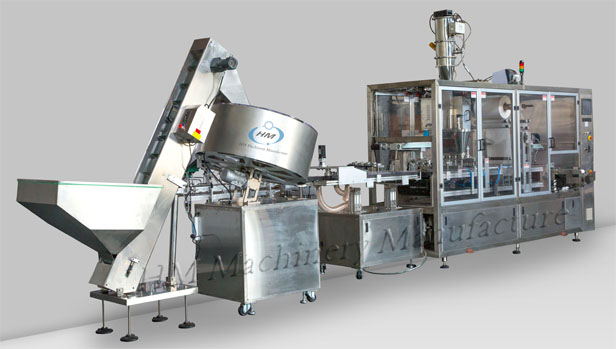

HSP-4 Nespresso Coffee Filling and Packing Production Line

Working Process:

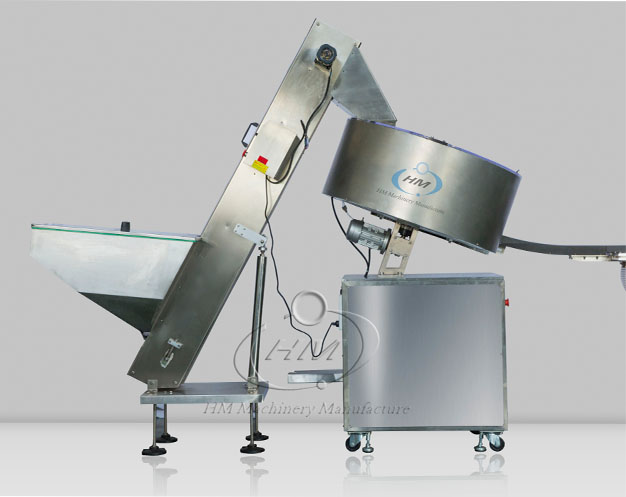

1. Sorting and Loading empty  nespresso capsule
2. Coffee filling and Sealing
3. Packing in bag
4. Packing in box

Machine Details:







Technical Data:

NO.	Model	HSP-4	HSP-6
1	Speed	Over 9000-9600Cups/hour	Over 10800Cups/hour
2	Working	4lanes	6lanes
3	Filling range	0-20grams	0-20grams
4	Filling accuracy	±1.5%	±1.5%
5	Voltage	Three Phase  220V 60HZ／7KW,	Three Phase 220V 60HZ／7KW,
6	Air  pressure / gas consumption	≥0.8Mpa／0.1m²	≥0.8Mpa／0.1m²
7	Working Temperature	5-35°C	5-35°C
8	Relative humidity	≤85％	≤85％
9	Machine size	L 5000mm* W1000mm* H2600mm	L 5000mm* W2900mm* H2550mm
