Nespresso Coffee Capusle Filling and Sealing Machine

Brief Instruction:
HSP serial Coffee Capsule Filling Sealing Machine use for Nespresso capsule is the latest Version Machine, High speed and high quality meet EURO machine standard, this model machine is design specially for nespresso capsule Filling and Sealing. Its material use is better than previous machines; Components use top brand.

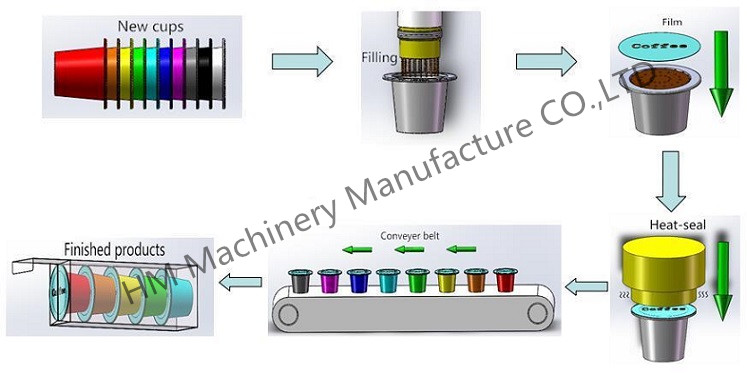

Main Working Process:
☆ Special Loading system for capsules
☆Automatic drop empty capsules to machine
☆ First time filling Nitrogen into capsule.
☆Automatic detect whether Nespresso capsule well loated on the machine by sensor.

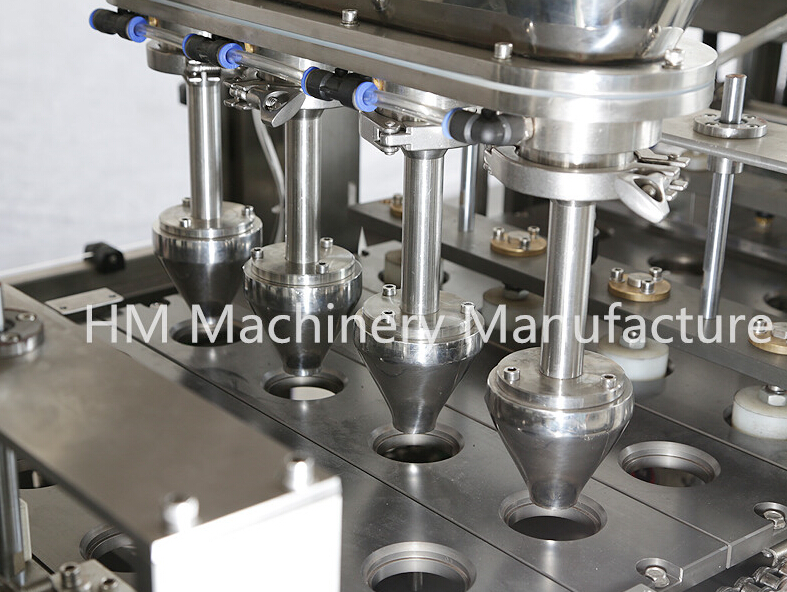

☆ Servo motor to fill coffee while vibrating, weight around 5-20g ( can be adjust), also second time filling Nitrogen into capsule.
☆ The Third time filling Nitrogen into Capsule
☆Auto suck Foil Lids.
☆Auto detect whether the foil lids is ready by Sensor
☆ Auto Seal the aluminum lids.
☆ Automatic mechanical grasp the finished product to conveyor ( connect to the conveyor)
☆ transport the sealed capsule to the Bag Packing Machine,
☆ Bag packing


Technical Parameter:

NO.

Model

HSP-1/2/4/ 6/8

1

Speed

Over2000-18000 C/H

2

Working station
1/2/4/6/8lanes

3

Filling range

0-20grams

4

Filling accuracy

±1.5%

5

Voltage
280V60HZ/ 3KW

6
Air          pressure     /     gas consumption ≥0.8Mpa?0.1m²

7

WorkingTemperature

5-35°C

8

Relative humidity
≤85?

We Also provide Emty good quality K-cup, Nespresso capsule, etc.
